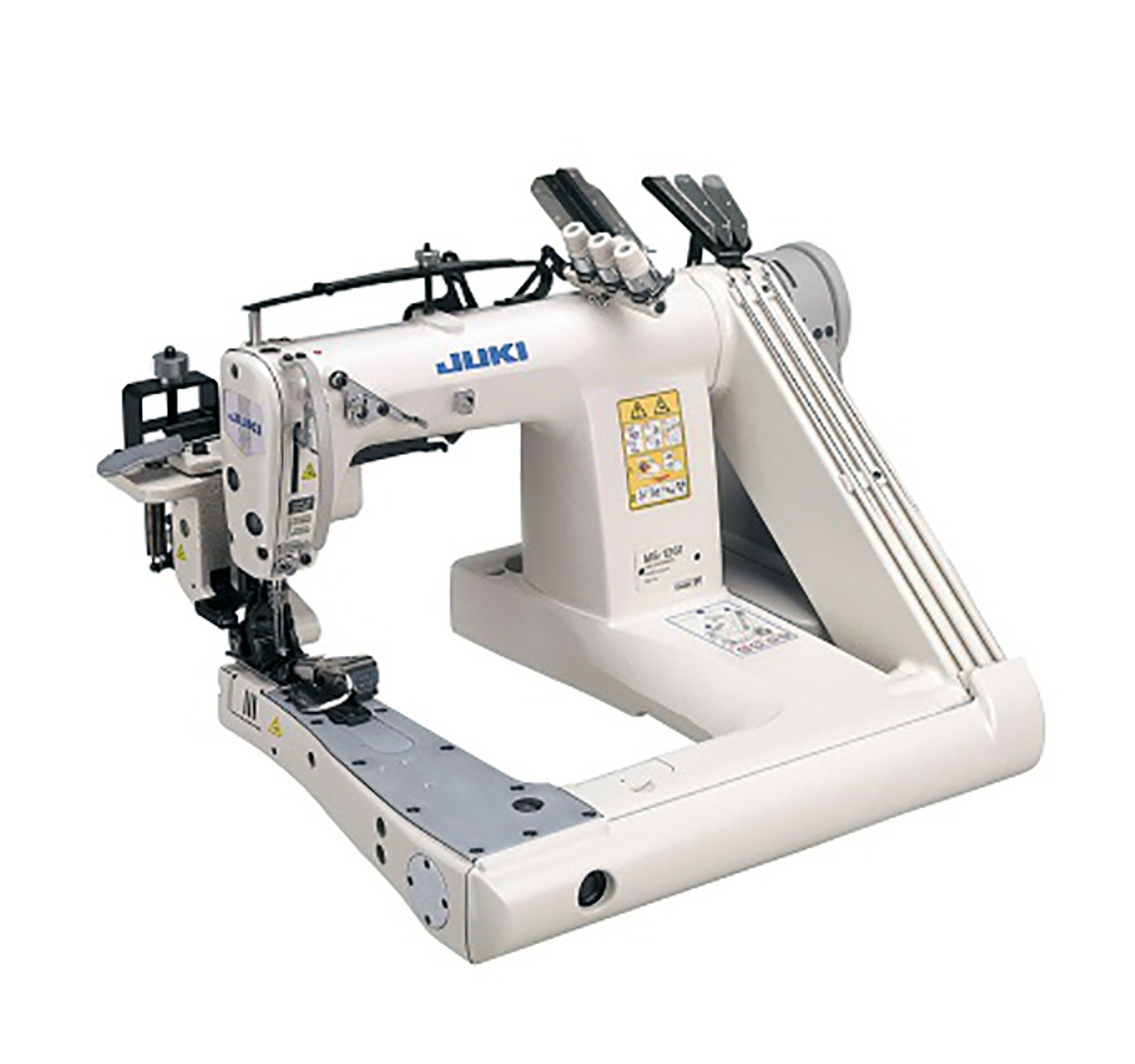

JUKI MS-1190 Feed-Off-The-Arm Double Chain Stitch Industrial Sewing Machine With Table and Servo Motor

  • Description
  • Reviews (0)

Description

Thanks to the thread guide located between the needle bar thread take-up and the intermediate tension release lever, the timing to tense the needle thread can be decreased. As a result, the machine is capable of beautiful stitches with a soft appearance even when heavy-weight material is used.

MACHINE FEATURES:

  • Achieve beautifully finished seams while preventing puckering and stitch skipping.
  • Low tension stitching ability and improved stitching mechanism prevents puckerin
  • The machine prevents stitch skipping even when it runs at high speed, ensuring high-quality products.
  • The machine is equipped as standard, with newly developed folders which enable the machine to perform stitching with consistency.
  • Designed for ease of use. Push button type stitch length dial, times of feed driving and looper rocking cam can be separately adjusted

MACHINE SPECIFICATIONS:

  • Application: Light-Weight
  • Max Sewing Speed: 4000 Stitches Per Minute
  • Stitch Length: 1.20 – 4.2 mm
  • Needle Gauge: 3.2mm (1/8″)~6.4mm (1/4″)
  • Needle: TV×64-NY (#12) #8~#14 B-64 (Nm80) Nm60~Nm90

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same
